美利達自行車Scultura CF 907 消光黑
Scultura CF 907 消光黑
質感消光黑塗裝
Scultura Pro-E碳纖維車架，X-Taper頭管、Double Chamber雙通道設計、生物纖維抑震配方、Flex-Stay彈性後叉、奈米碳纖維、隱藏式走線。
Scultura carbon lite碳纖維前叉，高剛性不失舒適性能。
Shimano Ultegra 22段變速系統，11-28T飛輪，50-34T登山盤配置。
FSA、MERIDA零組件，Prologo Zero2 T2.0座墊，Fulcrum Racing 3輪組，Continental GP4000S 23 KV外胎。
| 年份 | 2014 |
|---|---|
| 車種名 | Scultura CF 907 消光黑 |
| 建議售價 | 99800 |
| 速別 | 22 |
| 車架 | Scultura Pro-E |
| 尺寸 | XXS(44)-XS(47)-S(50)-S/M(52)-M/L(54)-L(56)-XL(59) |
| 顏色 | 平卡夢黑/紅標 |
| 前叉 | Scultura carbon lite |
| 剎車器 | Shimano Ultegra |
| 鏈條 | Shimano 11s |
| 齒盤 | FSA CK-OSC8681 50-34(照片僅供參考，以實物為準) |
| 前變速器 | Shimano Ultegra D |
| 後變速器 | Shimano Ultegra SS |
| 飛輪 | Shimano CS-6800 11-28 11s |
| 手把 | FSA Energy Ergo OS |
| 握把 | Merida Road Pro 3D |
| 手把豎管 | FSA Team Issue -6 |
| 車頭碗 | Big Conoid A-bearing neck pro |
| 車圈 | Fulcrum Racing 3 |
| 座墊 | Prologo Zero2 T2.0 |
| 座管束 | Carbon 32 Allen |
| 變速控制桿-前 | Shimano Ultegra Dual Control |
| 變速控制桿-後 | Shimano Ultegra Dual Control |
| 外胎 | Continental Grand Prix 4000S 23 KV |
* 車種規格、顏色、配備以實車為準，本公司保留修改的權力
|

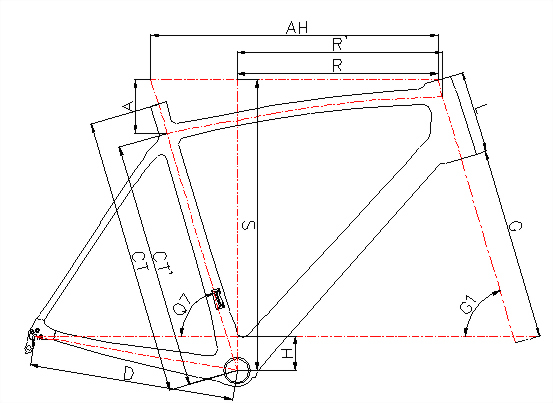

fr |
XXS | XS | S | S/M | M/L | L | XL |
| SEAT TUBE(CT) CENTER TO TOP | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| SEAT TUBE(CT') | 395.2 | 434.6 | 433.4 | 451.3 | 481.3 | 499 | 526.9 |
| TOP TUBE(AH)HORIZONTAL | 515 | 518 | 530 | 545 | 560 | 575 | 590 |
| CHAIN STAYS(D) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| HEAD TUBE ANGLE(Q1) | 71° | 71.5° | 72.5° | 73.5° | 73.5° | 73.5° | 74° |
| SEAT TUBE ANGLE(Q7) | 75° | 74° | 74° | 74° | 73.5° | 73° | 73° |
| BOTTOM BRACKET DROP(H) | 66 | 66 | 66 | 66 | 66 | 66 | 66 |
| HEAD TUBE LENGTH(L) | 110 | 120 | 130 | 140 | 160 | 180 | 205 |
| FORK LENGTH(G) | 374 | 374 | 374 | 374 | 374 | 374 | 374 |
| REACH (R | 378.6 | 368.8 | 377.1 | 388.4 | 392.6 | 396.3 | 403.5 |
| STACK(S) | 509 | 520.2 | 533.1 | 546.1 | 565.2 | 584.4 | 610.2 |
| REACH (R') | 387 | 376.8 | 385.9 | 398.1 | 402.1 | 406 | 414.5 |
| (A) | 127.2 | 102.5 | 116.4 | 112.2 | 103.7 | 107.2 | 106.3 |
